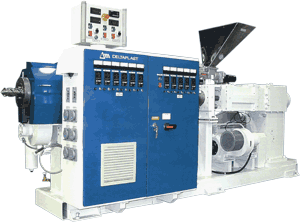

DTS Series

Parallel Twin Screw Extruders


The DTS Series is engineered and manufactured with the latest in P.V.C. twin screw technology utilizing precision manufactured long life components for top performance and durability. DTS Series extruders are available in three sizes: 75, 94 and 114mm screw diameters. All feature 26:1 or 33:1 L/D screw technology for high outputs. This rugged equipment is built without compromise for lnog term productivity and performance.


  KEY FEATURES:

IDEAL FOR THE FOLLOWING INDUSTRIES:

  • High Output Rates
  • Closed loop Internal Self Optimizing Screw Cooling System
  • Solid Cast Aluminum Heat/Cool Elements
  • Air Cooled
  • Low Maintenance
  • Compact Design
  • P.V.C Profile
  • P.V.C. Pipe





Extruder Drive Gear Box Screws Control Cabinet

AC vector drive systems for all applications in conjuction with vector duty low maintenace AC motors. Connected via direct coupling or fully guarded matched belts and sheaves.

Heavy duty high torque rated gear reducer with incrporated high capacity thrust bearings. The gear box is of compact design with sturdy cast housing manufactured to reduce misalignment and eliminate vibration. Optimized gear geometry and the use of high quality alloy steels in conjuction with special gear wheel productions techniques have contributed to lower noise levels and longer gear box lifetime

Extra depth nitrided screws designed for optimal throughputs manufactured from the highest quality nitrided alloy steel. Internal screw cooling achieved through a closed loop self optimizing system that requires no maintenance. Molybdenum surface wear protection coating for high wear applications gives significantly longer screw life, optinally available. Special performance designs engineered to suit individual applications for superior outputs and melt quality available.

Base mounted control panel containing microprocessor based temperature controllers, circuit breakers, ammeters, load contactors, and control transformer for each barrel and die zone. The drive operator keypad station containing the following; speed regulation, start/stop, screw speed indicator, load indicator as well as other drive data and fault indicators which are remote mounted near head on operator side. A die heating stepdown transformer is included. Power requirements 460/3/60 standard, 230/3/60 or 575/3/60 available.

Barrel Heating & Cooling Barrel Base

Clamp

Processing control achieved via cast aluminum heating elements, each zone individually shrouded to guide cooling air directly over barrel elements. Cooling air provided by externally mounted blowers. Long preheating zone for wide processing window.

Precision manufactured twin borings of the highest quality nitrided alloy steel. Extra depth nitriding of 0.7 to 0.9mm and hardness level of 58 to 60 HRC. Customer specific flanging available.

Heavy duty structural steel base provides for exact alignment between all plastification components. Extruder components including motor control panel and transformer prewired in a compact unitzed package for easy component accessibility and minimal installation time. The adjustment feature of the front barrel support allows for precise barrel alignment.

Three piece taper grip clamp with single swing bolt fastening capability provides positive seal and alignment between barrel and die flange. Two piece double hinged swing bolt design and adjustable hinged die support optionally available.

Optionally Available

Deltatech PLC-based touchscreen extrusion control system with multi microprocessor control, PID temperature control, closed loop speed control, direct access menus, full drive synchronization capability, alarm diagnostics, and various communications means.

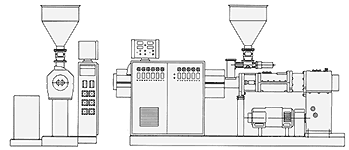

TECHNICAL DRAWING


DTS
75-26
DTS
75-33
DTS
94-26
DTS
94-33
DTS
114-26
DTS
114-33
Screw Diameter (mm)
75
75
94
94
114
114
Screw Length L/D
26
33
26
33
26
33
Max. Screw Speed (RPM)
32
32
26
26
21
21
Motor Power (HP)
50
60
75
100
100
125

Number of Heat Zones
2
3
2
3
2
3
Heating Power (kW)
12
18
18
27
24
36
Number of Heat/Cool Zones
3
3
3
3
3
3
Heat/Cool Power (kW)
9
9
15
15
18
21
Cooling Medium
Air
Air
Air
Air
Air
Air
Vacuum Pump HP
1.0
1.0
1.5
1.5
2.0
2.0
Total Die Zones
6
6
8
8
8
8
Power of Die Zones (kW)
18
18
24
24
24
24

Max Output Profile RPVC LB/KG/HR
650/295
715/325
913/415
1000/455
1232/560
1320/600
Maximum Ouput Pipe RPVC LB/KG/HR
780/355
880/400
1210/550
1375/625
1560/710
1870/850

Length Overall in/mm
148/3750
168/4270
185/4700
210/5350
208/5300
240/6100
Width Overall in/mm
48/1220
48/1220
48/1220
48/1220
52/1320
52/1320
Height Overall in/mm
96/2450
96/2450
98/2500
98/2550
100/2550
100/2550
Weight lb/kg
7150/3250
7436/3380
9660/4390
10035/4560
13450/6110
14000/6360






(adobe PDF format)
